We currently have 5 in stock.

Magswitch MLAY 1000x2 - 8100484

Write a review
| Ask a question
Regular price
€1.043,61 each
Sale price
€1.043,61 each
Vat : ( €166,98 each / Total: €1.210,59 each )
(16 % Vat applicable for European Country )
Shipping calculated at checkout.

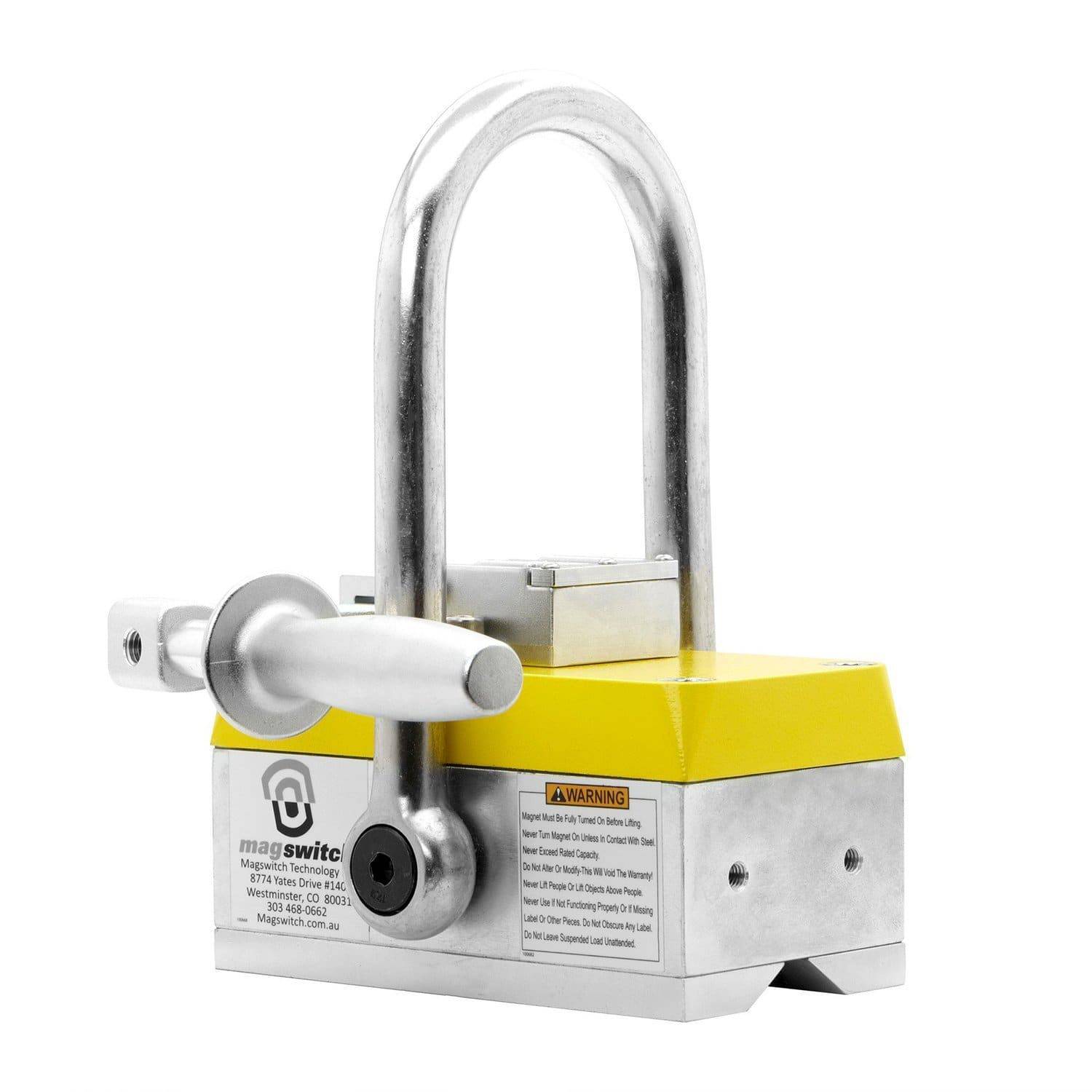

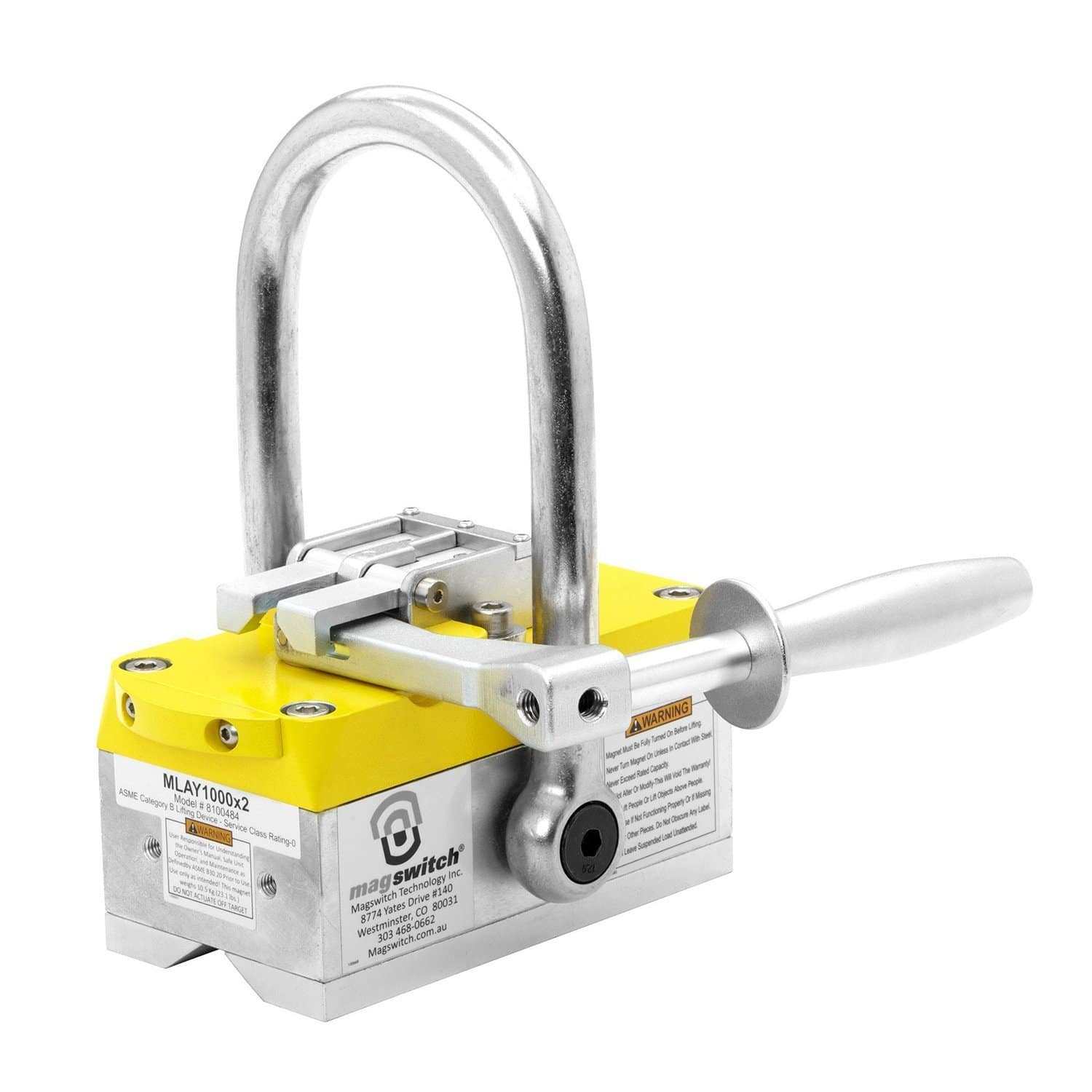

Built for heavy-duty lifting, our MLAY 1000x2 is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 303 kilograms. The pivoting lift hook offers the stability to lift from horizontal to vertical.

  • Magnetic field turns completely on and off mechanically.
  • Magnet stays clean.
  • Does not use an electrical power source.

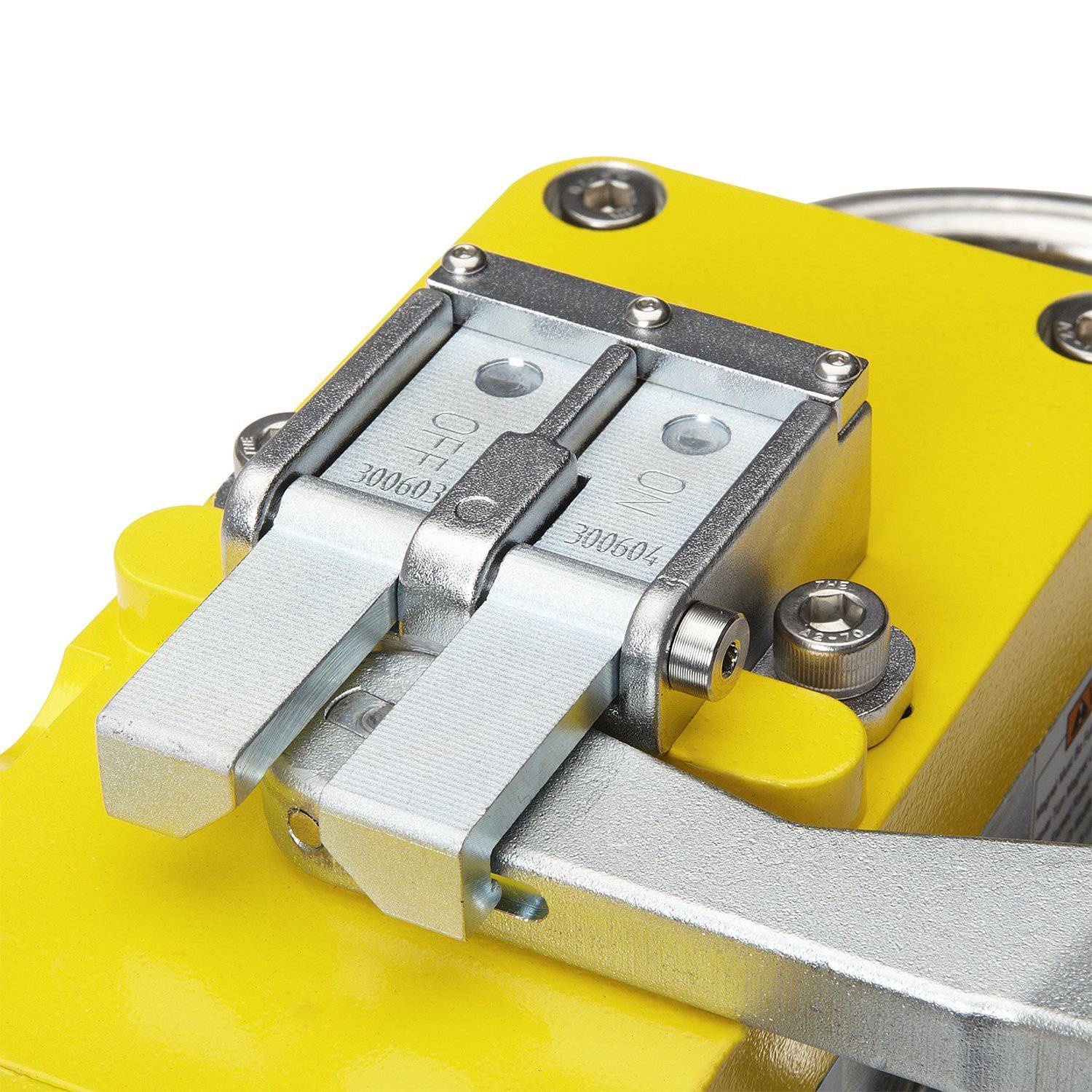

  • Lock On/Off handle.
  • Superior hold force on Thin steel (70 mm deep field).
  • Compact, lightweight and easy actuation.

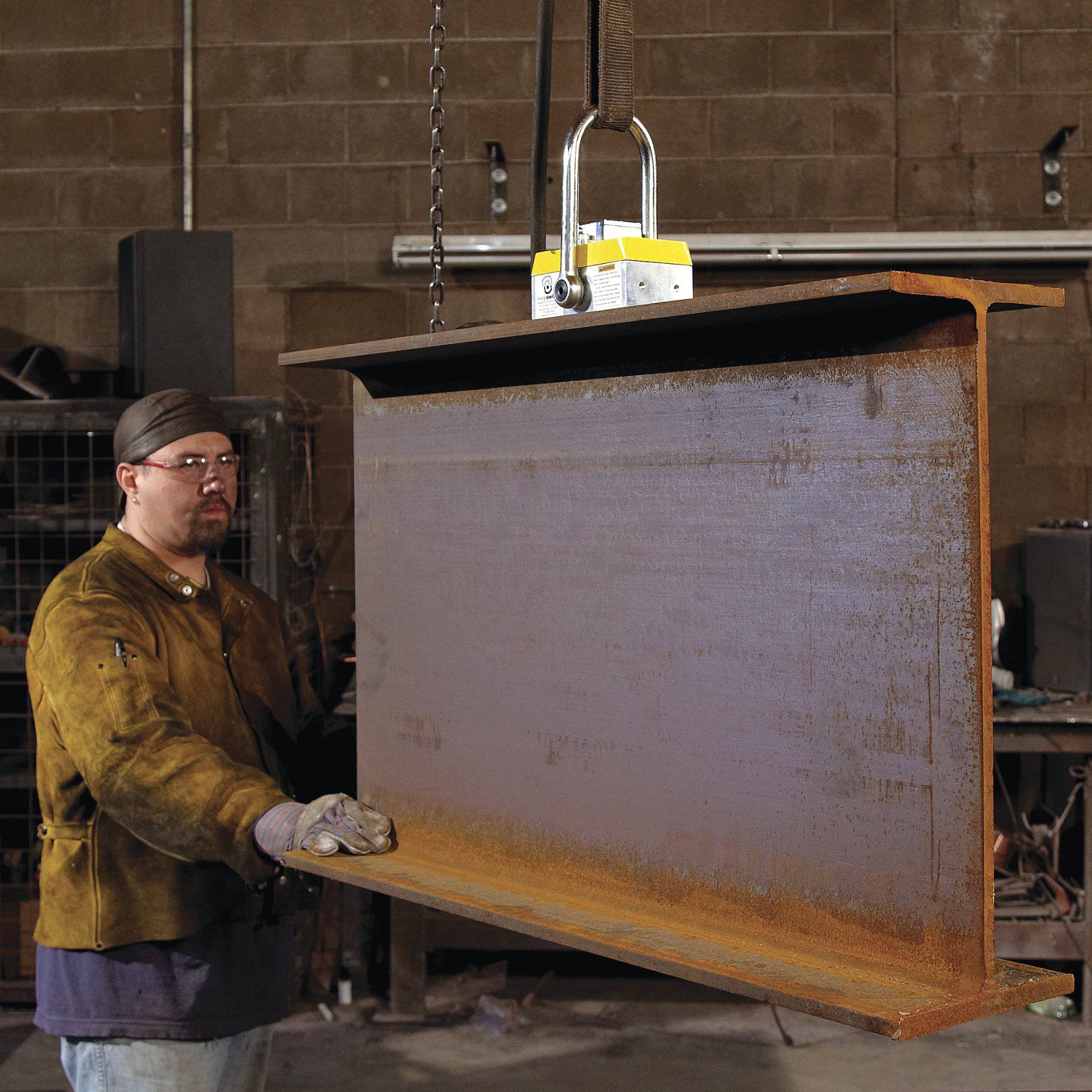

  • Lifts large flat sheets, beams, pipe.
  • Performs well on air gaps such as rust and dirt.
  • Customizable pole shoes to fit almost any application.

Specs

  • Max Breakaway: 909 kg / 2004 lbs on 25.4 mm steel
  • 3:1 Safe Working Load: 303 kg / 668 lbs
  • 2:1 Shear Working Load: 56.7 kg / 125 lbs
  • Full Saturation Thickness: 19 mm /  0.75 in
  • Minimum Thickness for De-Stack: 19 mm / 0.75 in
  • Product Weight: 10.8 kg / 23.8 lbs
  • Mounting Thread: M8x1.25
  • Overall Height: 12.6 x 7.7 x 10.5 in  / 320 x 195.5 x 266.7 mm

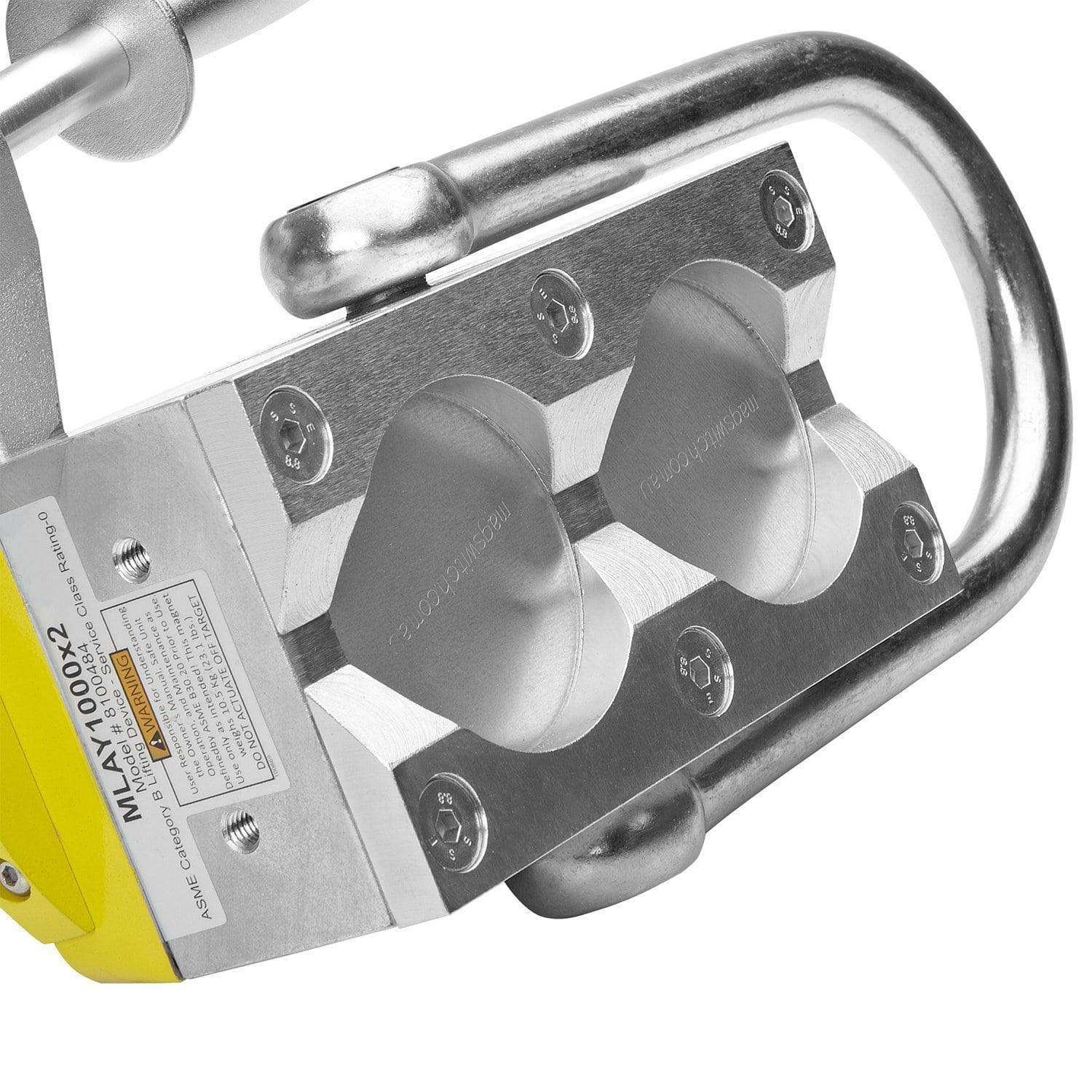

  • Magnetic Pole Footprint: 77.5 mm x 96 mm

 *This product ships from our Germany Warehouse.*
