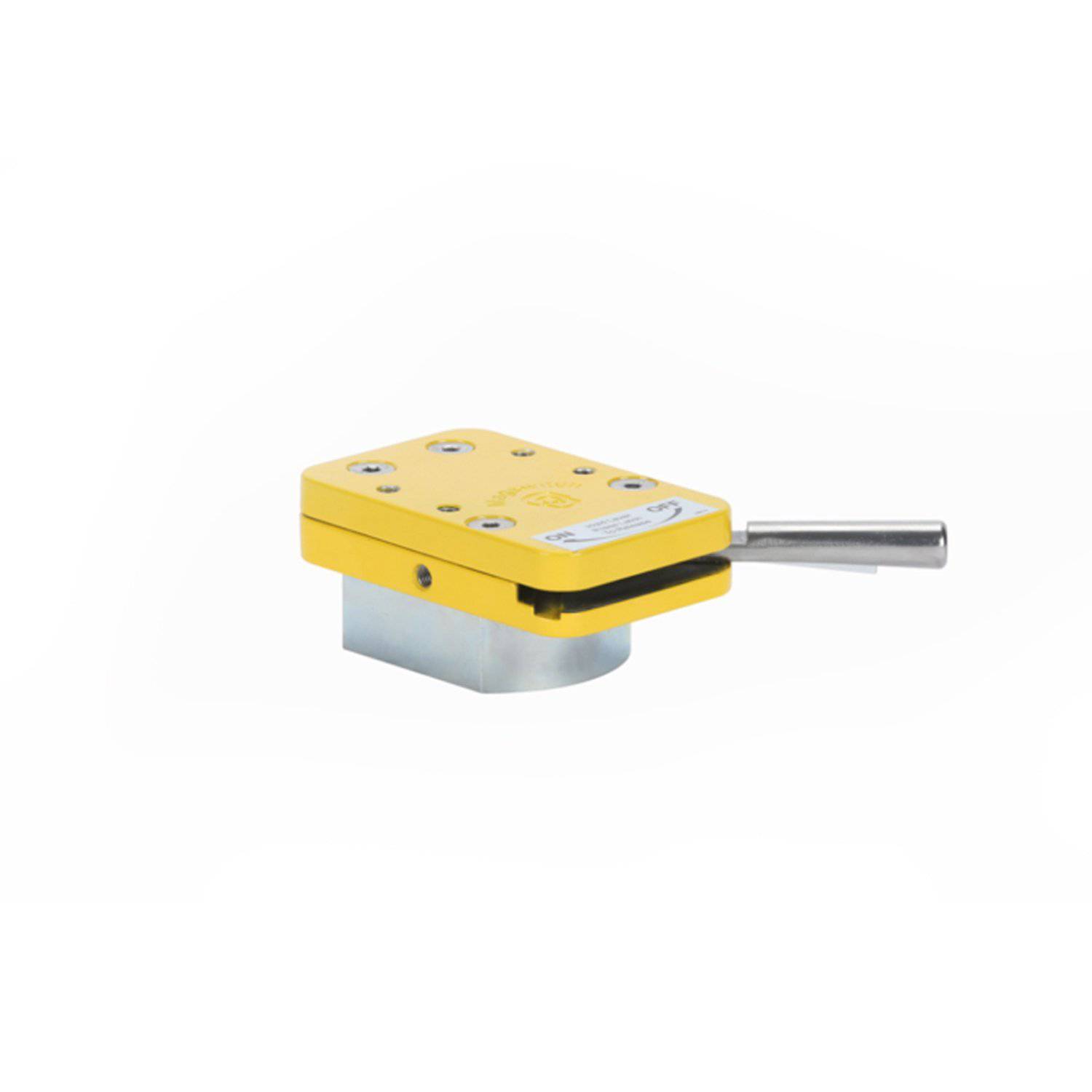

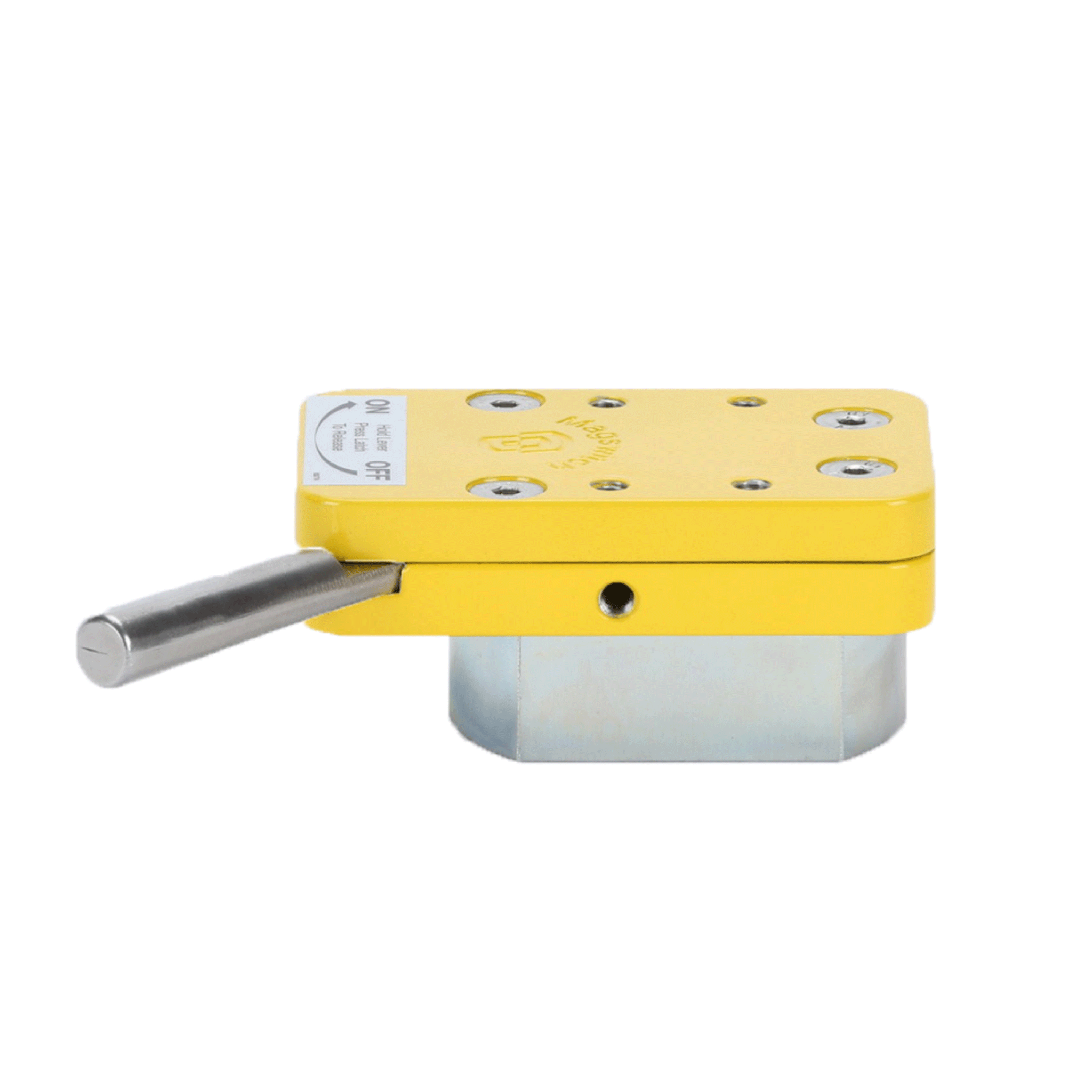

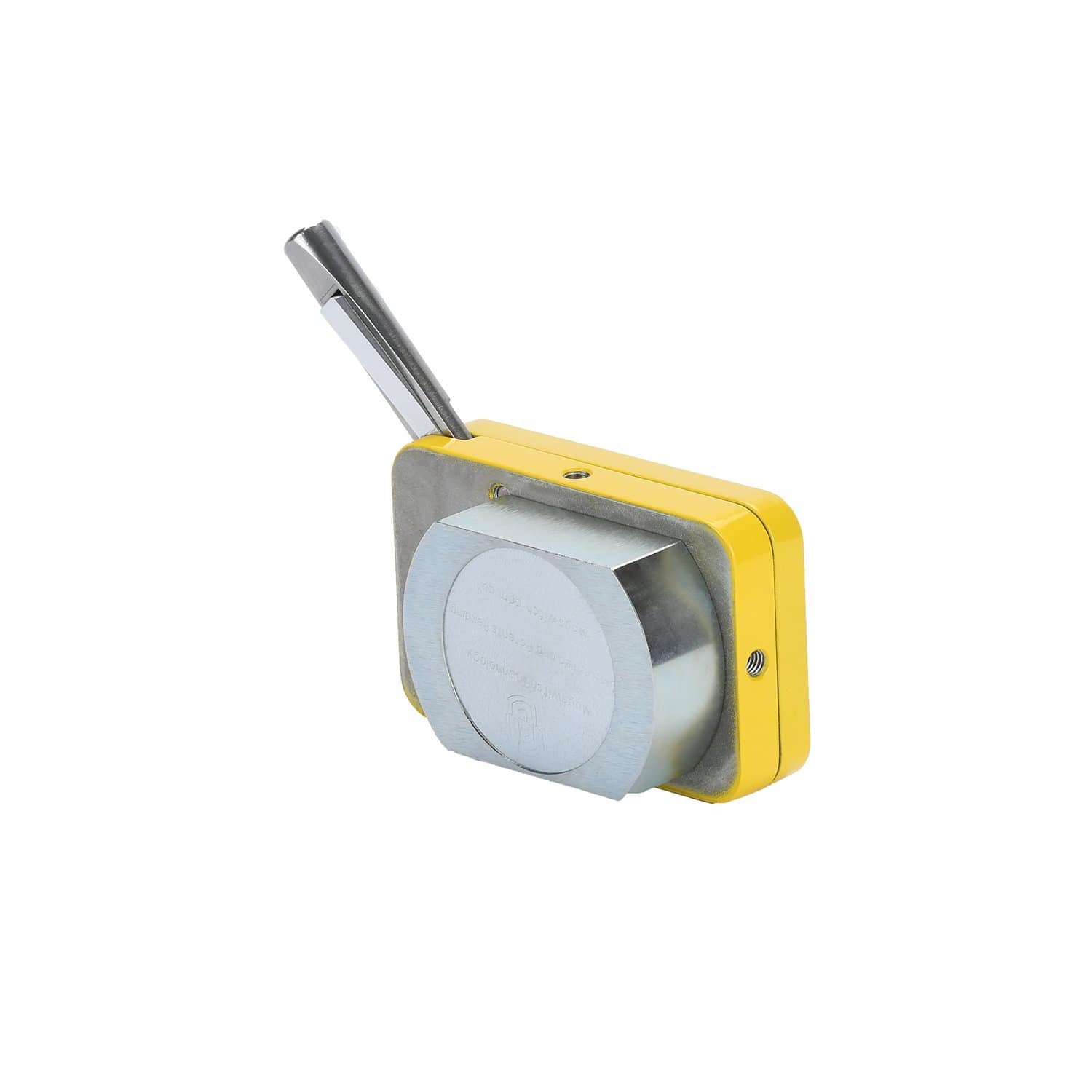

Magswitch magnetic mount allows for easy movement and placing of a tool. With a single on and off lever, you have 111 kg of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

Features

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• Fixed bar magnet is for flat steel
• Swivel bar magnet is for round or uneven shapes.
• Multiple threaded holes on the top.
• Perfect for top mount tools, measuring and security devices.

 Product price in EUR is exclusive of VAT. Currency conversion is based on market rate.

Specs

• Max Breakaway: 246 lbs (111.5 kg)
• Full Saturation Thickness: 3/16 in (4.75 mm)
• 2:1 Shear Working Load: 10.6 lbs (4.8 kg)
• Product Weight: 1.2 lbs (0.5 kg)
• Dimensions: 5.3 x 4.1 x 1.7 in ( 134.6 x 104.1 x 43.1 mm)
• Magnetic Pole Footprint: 71.8 mm x 51.5 mm

Downloads

MagMount 300 Spec Sheet
