Magswitch 90 Degree Angle 400 - 8100454

Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
Magswitch 90 Degree Angle 400 - 8100454 - Mag-Tools Europe
We currently have 47 in stock.

Magswitch 90 Degree Angle 400 - 8100454

Write a review
Regular price
€285,63 each
Sale price
€285,63 each
Vat : ( €45,70 each / Total: €331,33 each )
(16 % Vat applicable for European Country )
Shipping calculated at checkout.

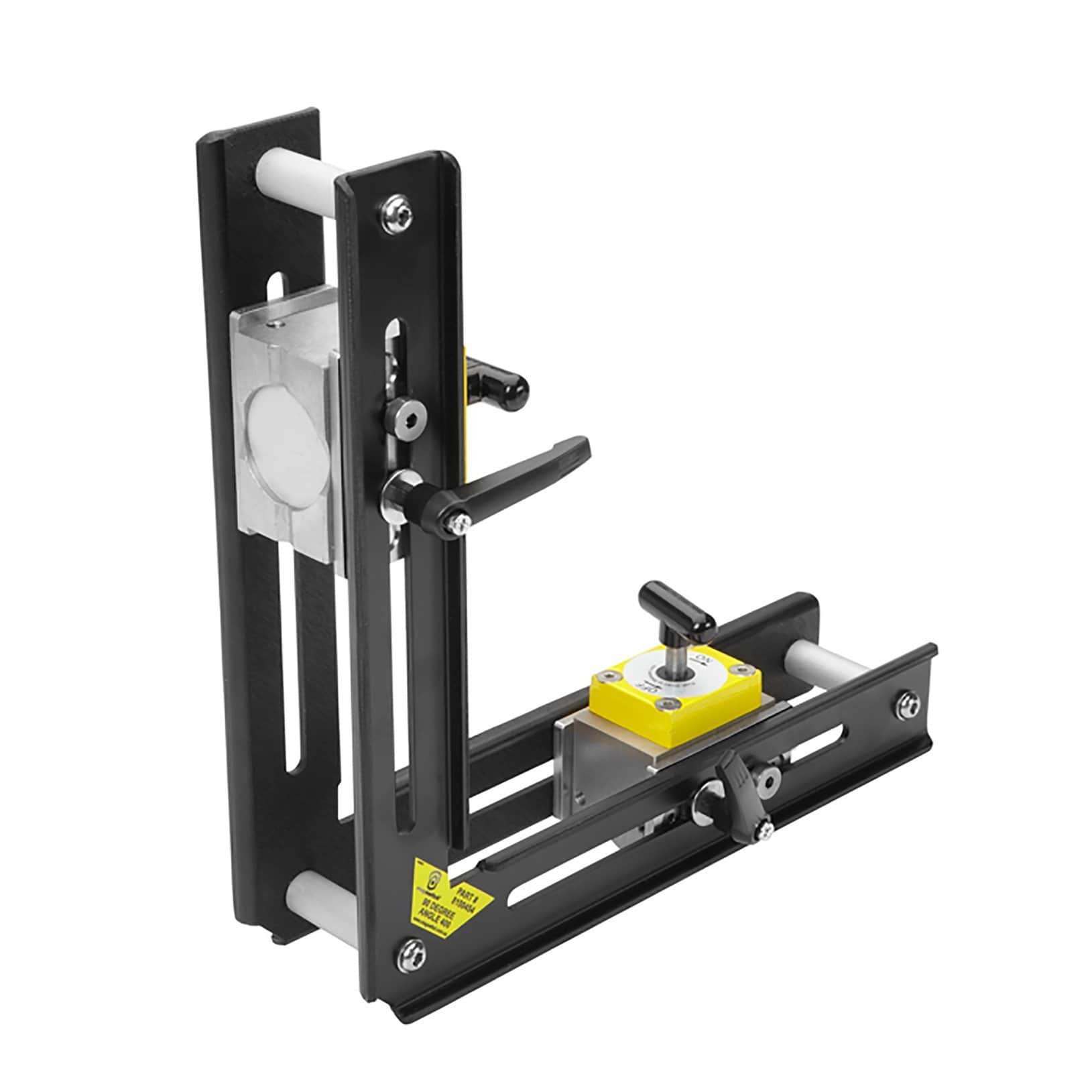

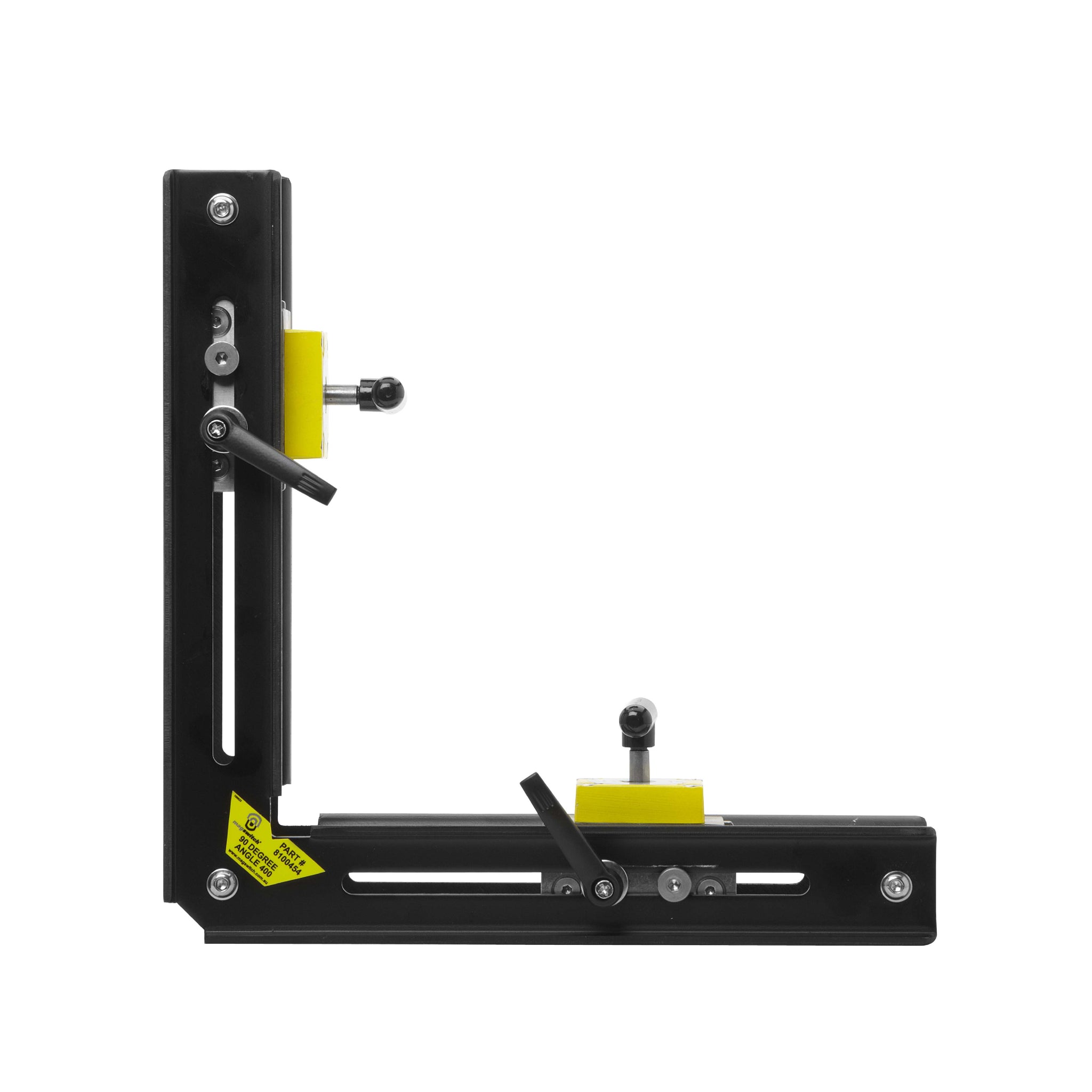

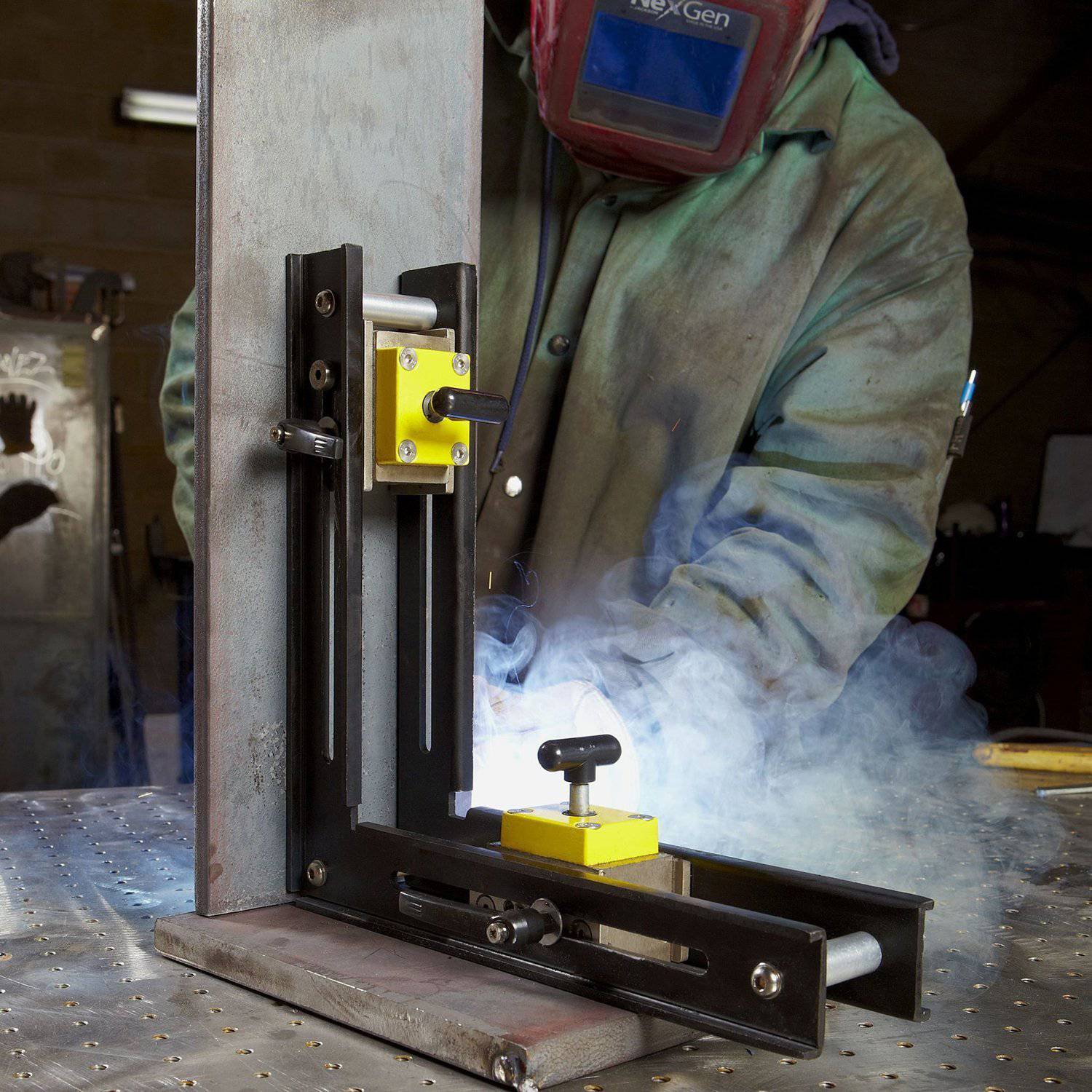

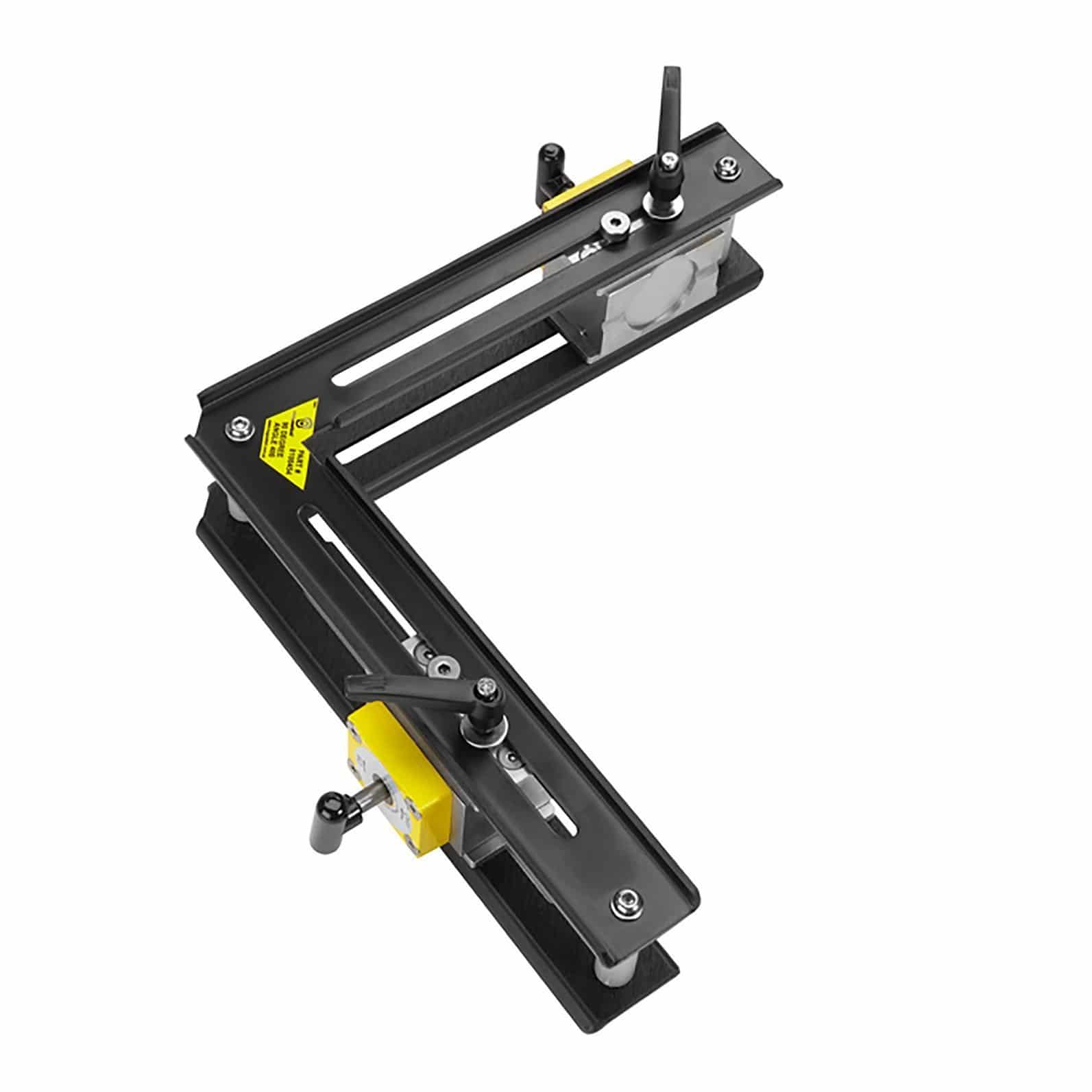

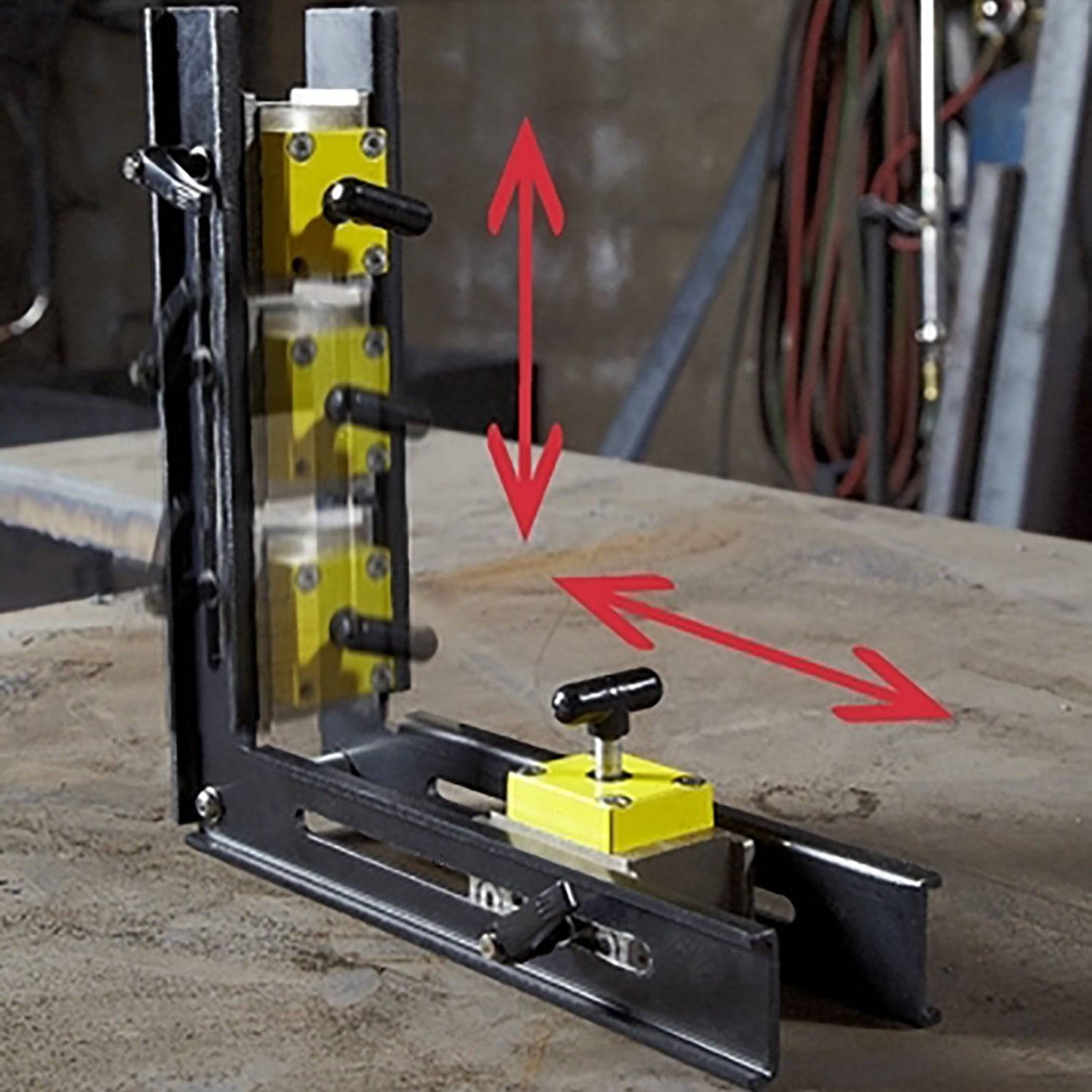

Deliver superior accuracy with our fixed 90-degree welding angle. Adjust the MagSquares by sliding them up or down on each axis for unmatched versatility. Switch on and off 181 kgs of magnetic holding force by rotating the black knobs. Comes ready to use with two MagSquares, as pictured.

Features

  • Magnetic field turns completely on and off mechanically.
  • Does not use an electrical power source.
  • Switch off to wipe away metal shavings.
  • Magnets stay clean.
  • Holds to flat and round surfaces of steel.
  • Lightweight with incredible strength.
  • Precision positioning.
  • MagSquares can be reversed on each axis.

Specs

  • Max Breakaway: 400 lbs / 181.4 kg (on 1/4'' steel)
  • Full Saturation Thickness: 0.1345 in / 3.43 mm
  • 2:1 Shear Working Load: 20 lbs / 9 kg
  • Product Weight: 6.2 lbs / 2.8 kg
  • Dimensions: 11.2 x 3.5 x 11.2 in / 284.4 x 88.9 x 284.4 mm
  • Magnetic Pole Footprint: 64 mm x 41.26 mm

Product price in EUR is exclusive of VAT. Currency conversion is based on market rate.
