Magswitch 6 Ton Beam Jack - 81001171

Magswitch 6 Ton Beam Jack - 81001171 - Mag-Tools Europe
Magswitch 6 Ton Beam Jack - 81001171 - Mag-Tools Europe
Magswitch 6 Ton Beam Jack - 81001171 - Mag-Tools Europe
We currently have 1 in stock.

Magswitch 6 Ton Beam Jack - 81001171

Write a review
| Ask a question
Regular price
€7.610,84 each
Sale price
€7.610,84 each
Vat : ( €1.217,73 each / Total: €8.828,57 each )
(16 % Vat applicable for European Country )
Shipping calculated at checkout.

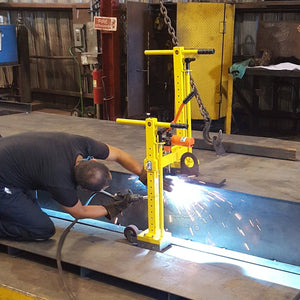

Increase speed and efficiency with the Magswitch 6 Ton Adjustable Beam Jack. Perfectly suited to pull ferrous steel flat against stiffener beams and eliminates air gaps to improve welding efficiency. A must-have tool in shipyards and anywhere steel is used!


Features

  • Removes airgaps between structural members (stiffeners) and their base material.
  • Lifters make contact with the base material and are turned on by simply actuating two handles. Once the lifters are actuated, the hydraulic jack can be pumped. This will apply pressure to the beam; pushing it down while pulling up the base material.
  • Works stronger on thinner materials.
  • Patented shallow field technology offers the ability to weld closely to magnets without having a negative effect on the weld.
  • Lighter than other competitors.
  • Magnet turns completely OFF and stays clean.

Product price in EUR is exclusive of VAT. Currency conversion is based on market rate.

 Specs

Magnetic Strength* 12203 lbs / 5535 kg
Full Saturation Thickness 1 in / 25.4 mm
Net Weight 152.2 lbs / 69 kg
Max Overall Height 40 in / 1012 mm
Magnetic Pole Footprint (2x) 98 x 493 mm



* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface roughness 63 micro inches.



Downloads

Magswitch 6 Ton Beam Jack Spec Sheet

Magswitch 6 Ton Beam Jack Flyer

Magswitch Beam Jack Series Brochure
