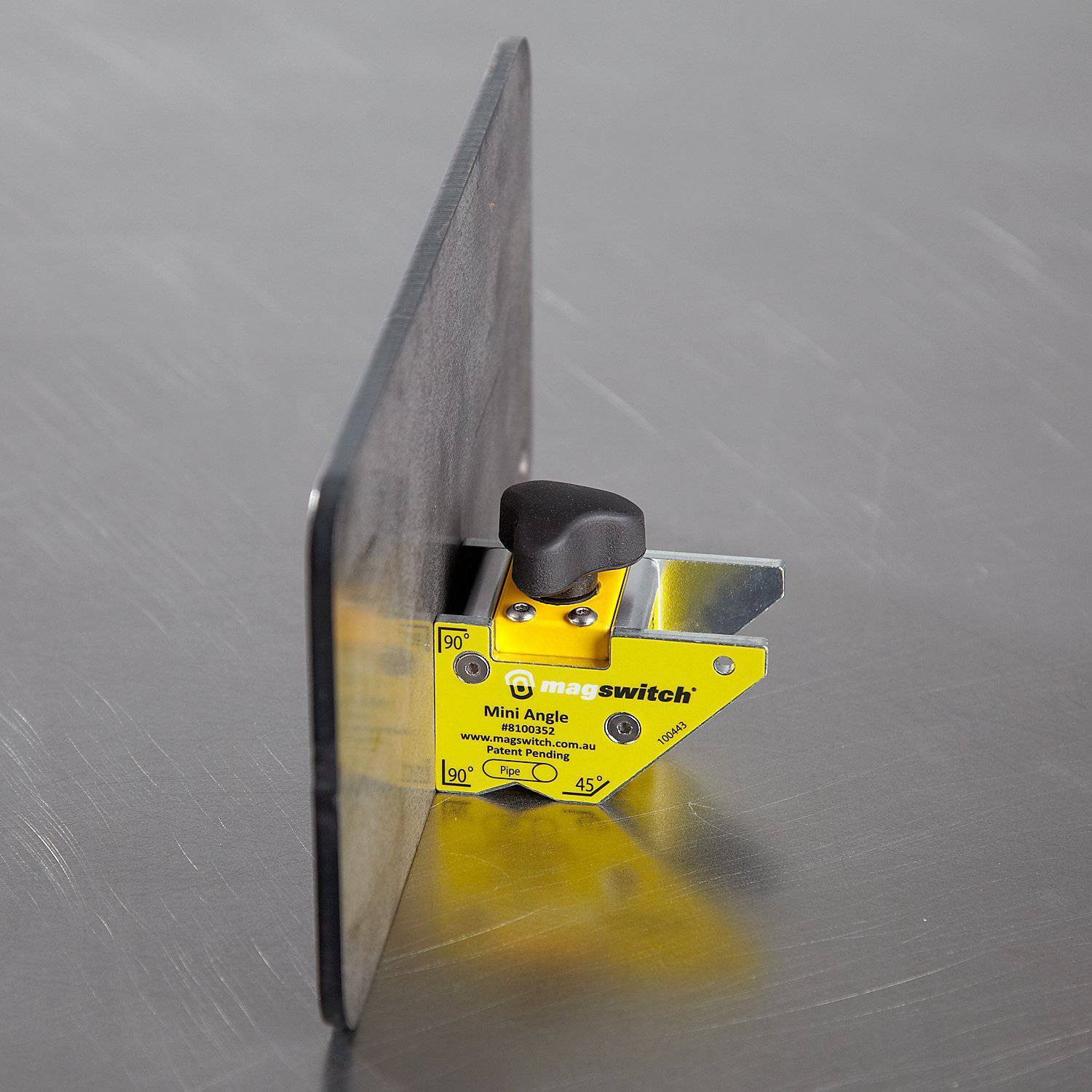

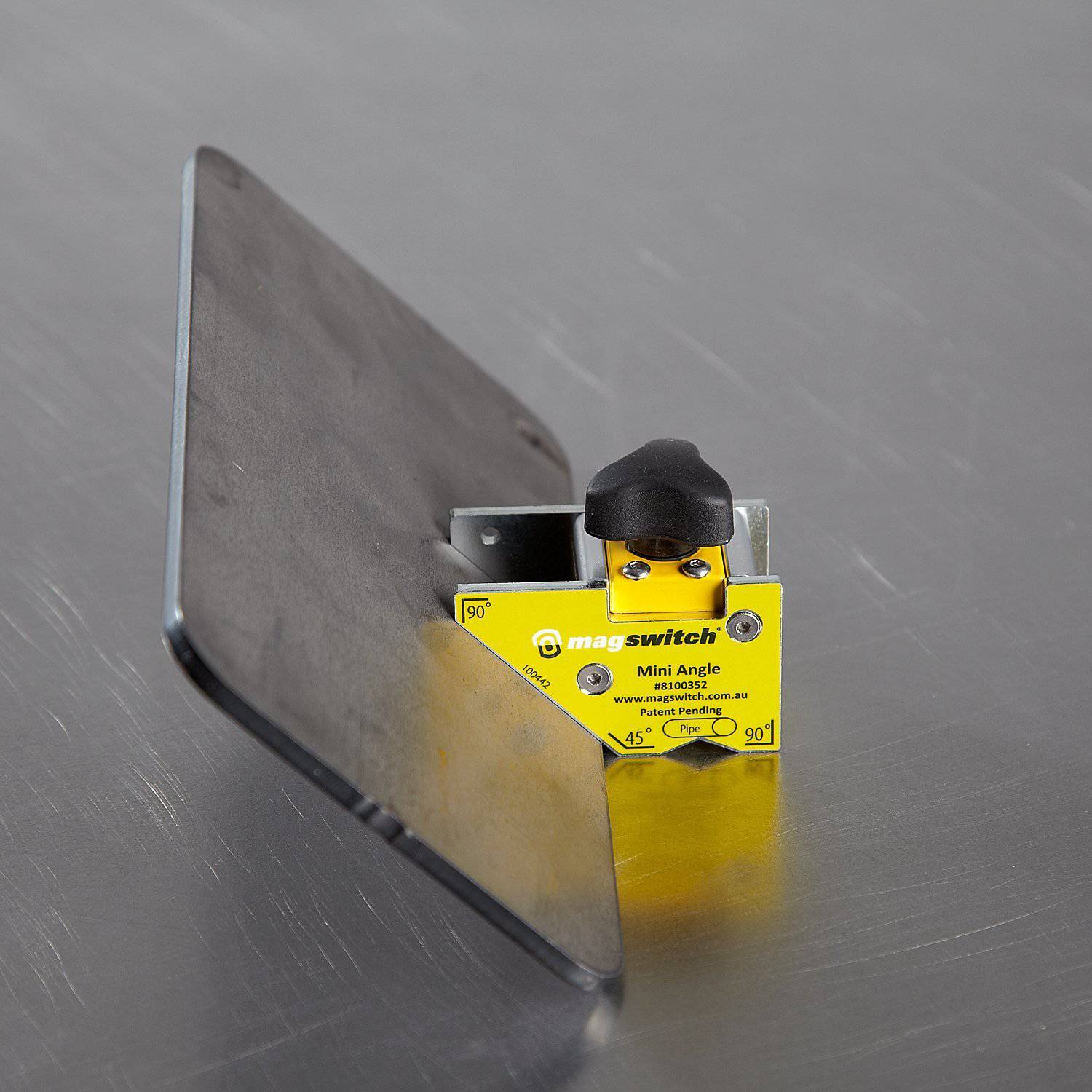

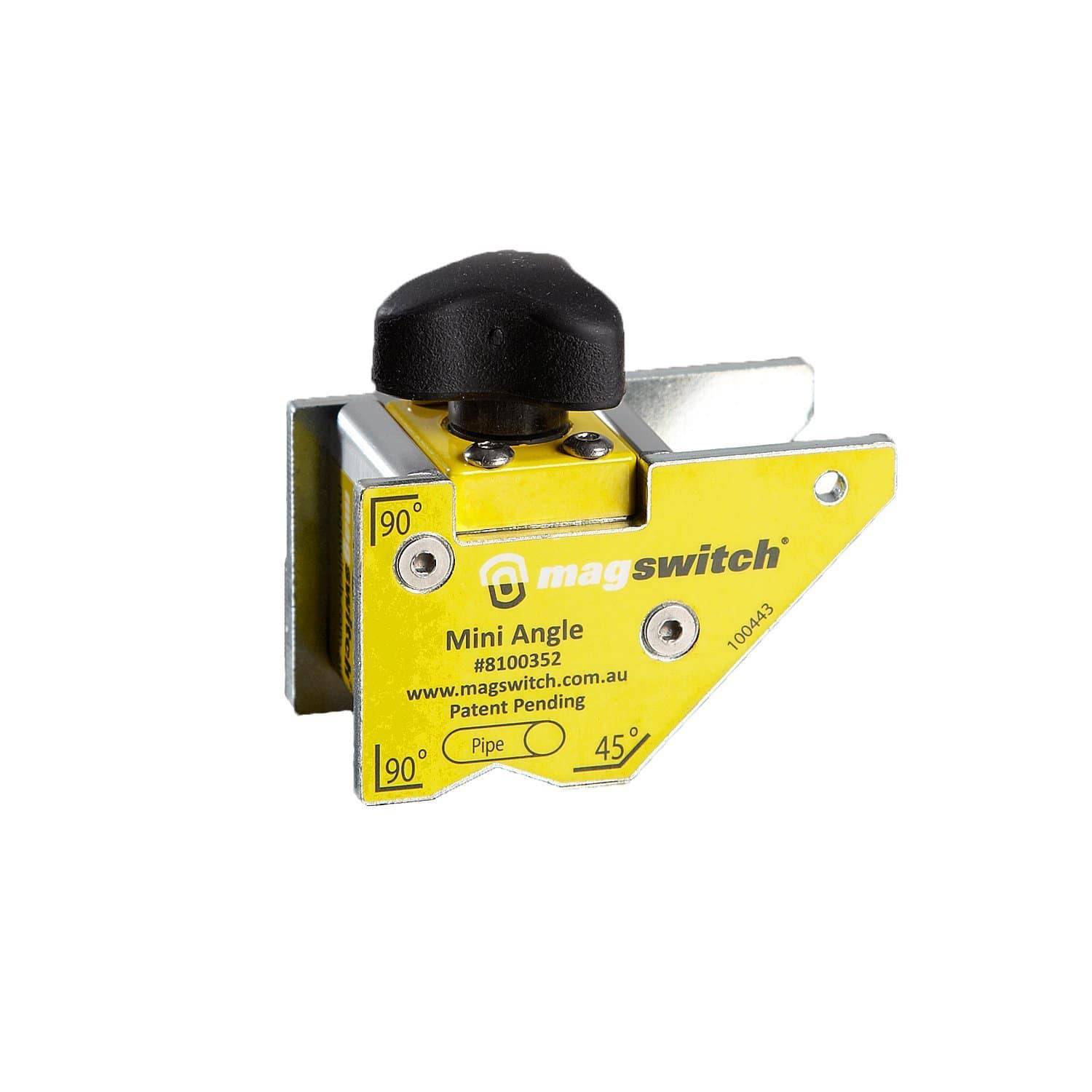

Magswitch Mini Angle - 8100352
We currently have 113 in stock.
Angle Welding Jig - This workholding offers you more flexibility than all other magnetic welding tools. Holds Common angles: 45°/135° and 90°. Includes pipe notch for attaching pipe and tubing. Magnetic square holds 34,4kgs.
F
FEATURES & BENEFITS
- Magnetic field turns completely on and off mechanically.
- Does not use an electrical power source.
- Magnet stays clean.
- Holds flat and round surfaces of steel.
- Multiplane magnetic grip on five sides.
- Machined at 90-degrees.
- Pre-tapped holes on four sides for mounting
SPECIFICATIONS
- Max Breakway: 34.4 kg / 76 lbs
- Full Saturation Thickness: 3.05 mm / 0.12 in
- 2:1 Shear Working Load: 2.7 kg / 6 lbs
- Product Weight: 0.18 kg / 0.4 lbs
- Dimensions: 58.4 x 33 x 53.3 kg / 2.3 x 1.3 x 2.1 in
- Magnetic Pole Footprint: 59.5 mm x 32 mm
